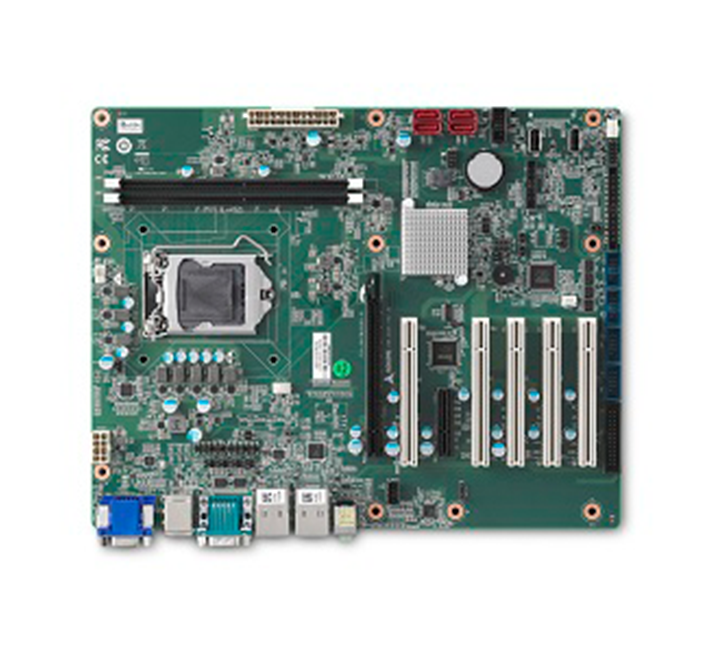

The ATX industrial motherboard supports 8th/9th generation Intel Core i9/i7/i5/i3 and Xeon E3 processors (LGA1151 package), as well as the Intel C246 chipset. Supports ubiquitous high-speed data transfer interface PCIe 3.0, USB 3.1 Gen2, SATA 6gb/s (SATA III), dual channel DDR4 2400/2666mhz ECC or non ECC memory, 4 DIMM slots, and a maximum of 128GB. Provide a scalable and high-performance industrial machine automation system platform, machine vision system, testing and measurement applications, as PCIe Lane IMB-M45 enables intelligent allocation (3 xpcie 3.0 x4 lanes 3.0+1 xpcie x16 lanes, or 3 xpcie 3.0 x4 lanes+2 xpcie 3.0 x8 lanes) for a wide range of user configurations. In addition, ADLINK's advanced and robust I/O and power design ensures excellent compatibility and long-term stability and reliability, while meeting the requirements of EN55032/55035 B-level standards.

The IMB-M45H ATX industrial motherboard supports LGA1151 packaged 8th/9th generation Intel Core i9/i7/i5/i3 processors and Intel H310 chipset. Supports ubiquitous high-speed data transfer interfaces PCIe Gen3, USB 3.1 Gen1, SATA 6GB/s (SATA III), dual channel DDR4 2400/2666mhz memory, maximum 64GB of memory, and 2 DIMM slots. Providing a scalable high-performance platform for various applications such as motion controllers, the IMB-M45H supports multiple user configurations including 1xPCIe Gen3 x16 lanes, 1xPCIe Gen2 x4 lanes, and 5xPCI. In addition, advanced and robust I/O and power supply designs ensure excellent compatibility, long-term stability, and reliability, while meeting the requirements of EN55032/55035 B-level standards.

IMB-M43 supports 6th and 7th generation Intel ® The Core i7/i5/i3 desktop processor and H110 chipset provide the most cost-effective solution for embedded computing, meeting the specific needs of all users who require 5 PCI expansion cards. The IMB-M43H has high-speed data transfer interfaces such as PCIe 3.0/2.0, USB 3.0 and SATA 6 Gb/s (SATA III), dual channel DDR4 memory, two DIMM slots, and supports up to 32GB of memory expansion. In industrial automation applications, the IMB-M43H has a significant competitive advantage. The leading reinforced I/O design, with strong device compatibility, persistent connectivity, and the ability to withstand extreme environments, enhances the user experience.

IMB-M43H is an ATX industrial motherboard that supports 6th and 7th generation Intel Core i7/i5/i3 desktop processors and the IntelR H110 chipset. It provides the most cost-effective solution for embedded computing, meeting the specific needs of all users who require 5 PCI expansion cards. The IMB-M43H has high-speed data transfer interfaces such as PCIe 3.0/2.0, USB 3.0 and SATA 6 Gb/s (SATA III), dual channel DDR4 memory, two DIMM slots, and supports up to 32GB of memory expansion. In industrial automation applications, the IMB-M43H has a significant competitive advantage. The leading reinforced I/O design, with strong device compatibility, persistent connectivity, and the ability to withstand extreme environments, enhances the user experience.

The AmITX-SL-G is a Mini ITX motherboard that supports 6th/7th generation Intel Core i7/i5/i3, Pentium and Celeron desktop processors, and the IntelR Q170/H110 chipset. The AmITX-SL-G is designed specifically for customers who require high-end computing and graphics processing performance, as well as long product lifecycle solutions. The AmITX-SL-G Mini ITX motherboard integrates the 9th generation Intel R display core, supporting DirectX 11/12, OGL 4.3/4.4, 3 independent synchronous display outputs, including 3 DisplayPorts and optional eDP or dual channel 18 bit/24 bit LVDS. In addition, the AmITX-SL-G Mini ITX motherboard also supports ultra-high definition 4K with a resolution of up to 4096 x 2304@60Hz . The AmITX-SL-G Mini ITX motherboard has 3 DisplayPort ports, dual Gigabit Ethernet ports, USB 3.0 ports, USB 2.0 ports, SATA 6Gb/s ports, and 7.1 channel high fidelity audio interfaces. The expansion slot contains 1 PCIe x16, 1 PCIe x1, and 2 mini PCIe. The onboard functional connector supports GPIO, SMBus, and I2C. This motherboard is equipped with SPI AMI EFI BIOS and supports embedded features such as hardware monitoring and watchdog timer.

The brand new PICMG 1.3 single board computer NuPRO-E43 supports the sixth generation Intel? Core? I7/i5/i3 processors, equipped with Intel? Q170 Express chipset. The NuPRO-E43 supports high-speed data transfer interfaces such as PCIe 3.0, USB 3.0, and SATA 6Gb/s (SATA III). In addition, it also supports dual channel DDR4 2133 MHz memory slots, up to 32GB. The NuPRO-E43 integrates dedicated high bandwidth PCIe x16 Gen3 (configurable as 2x PCIe x8 or 1x PCIe x8+2x PCIe ex4 connected to the backplane), PCIe x4, and regular PCI slots, making it compatible with high-speed image capture cards and motion control cards, providing the optimal solution for machine vision and automation applications. In addition, NuPRO-E43 has industry-leading reinforced I/O and software protection keys based on SEMA 3.0 eAPI, which can enhance data protection and give it a significant competitive advantage in automation applications.
