IMB Series

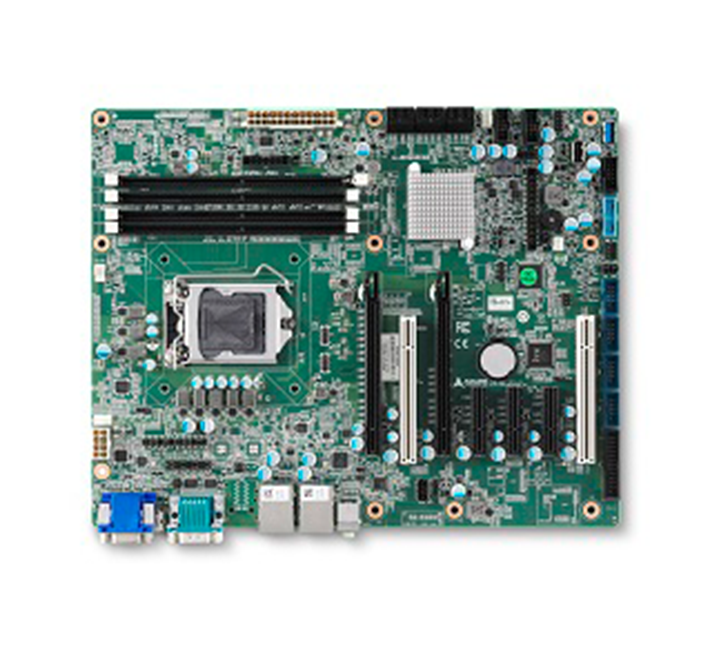

IMB-M45 type

The ATX industrial motherboard supports 8th/9th generation Intel Core i9/i7/i5/i3 and Xeon E3 processors (LGA1151 package), as well as the Intel C246 chipset. Supports ubiquitous high-speed data transfer interface PCIe 3.0, USB 3.1 Gen2, SATA 6gb/s (SATA III), dual channel DDR4 2400/2666mhz ECC or non ECC memory, 4 DIMM slots, and a maximum of 128GB.

Provide a scalable and high-performance industrial machine automation system platform, machine vision system, testing and measurement applications, as PCIe Lane IMB-M45 enables intelligent allocation (3 xpcie 3.0 x4 lanes 3.0+1 xpcie x16 lanes, or 3 xpcie 3.0 x4 lanes+2 xpcie 3.0 x8 lanes) for a wide range of user configurations. In addition, ADLINK's advanced and robust I/O and power design ensures excellent compatibility and long-term stability and reliability, while meeting the requirements of EN55032/55035 B-level standards.

Product manual download Free Access

Product Parameter
Product Details
FAQ
Video

main features

Supports 8th/9th generation Intel ® Core? I7/i5/i3 or Xeon ™ E processor and C246 chipset
Supports ECC or non ECC UDIMM (depending on CPU)
Dual channel DDR4 2400/2666 MHz memory, supporting up to 128 GB (depending on
® Intel PCIe 3.0 slot fork, supports up to 5x PCIe 3.0 expansion technology
Reinforced I/O design can enhance the compatibility and reliability of I/O interfaces
Unique power design ensures a stable USB power supply of 5V ± 5%
IEC 61000-4-2-6 (Performance Standard A), CE/FCC class B certification

Recommended Product

IMB-M45H type

The IMB-M45H ATX industrial motherboard supports LGA1151 packaged 8th/9th generation Intel Core i9/i7/i5/i3 processors and Intel H310 chipset. Supports ubiquitous high-speed data transfer interfaces PCIe Gen3, USB 3.1 Gen1, SATA 6GB/s (SATA III), dual channel DDR4 2400/2666mhz memory, maximum 64GB of memory, and 2 DIMM slots. Providing a scalable high-performance platform for various applications such as motion controllers, the IMB-M45H supports multiple user configurations including 1xPCIe Gen3 x16 lanes, 1xPCIe Gen2 x4 lanes, and 5xPCI. In addition, advanced and robust I/O and power supply designs ensure excellent compatibility, long-term stability, and reliability, while meeting the requirements of EN55032/55035 B-level standards.

Explore Details

IMB-M43

IMB-M43 supports 6th and 7th generation Intel ® The Core i7/i5/i3 desktop processor and H110 chipset provide the most cost-effective solution for embedded computing, meeting the specific needs of all users who require 5 PCI expansion cards. The IMB-M43H has high-speed data transfer interfaces such as PCIe 3.0/2.0, USB 3.0 and SATA 6 Gb/s (SATA III), dual channel DDR4 memory, two DIMM slots, and supports up to 32GB of memory expansion. In industrial automation applications, the IMB-M43H has a significant competitive advantage. The leading reinforced I/O design, with strong device compatibility, persistent connectivity, and the ability to withstand extreme environments, enhances the user experience.

Explore Details

IMB-M43H

IMB-M43H is an ATX industrial motherboard that supports 6th and 7th generation Intel Core i7/i5/i3 desktop processors and the IntelR H110 chipset. It provides the most cost-effective solution for embedded computing, meeting the specific needs of all users who require 5 PCI expansion cards. The IMB-M43H has high-speed data transfer interfaces such as PCIe 3.0/2.0, USB 3.0 and SATA 6 Gb/s (SATA III), dual channel DDR4 memory, two DIMM slots, and supports up to 32GB of memory expansion. In industrial automation applications, the IMB-M43H has a significant competitive advantage. The leading reinforced I/O design, with strong device compatibility, persistent connectivity, and the ability to withstand extreme environments, enhances the user experience.

Explore Details
