RK Type

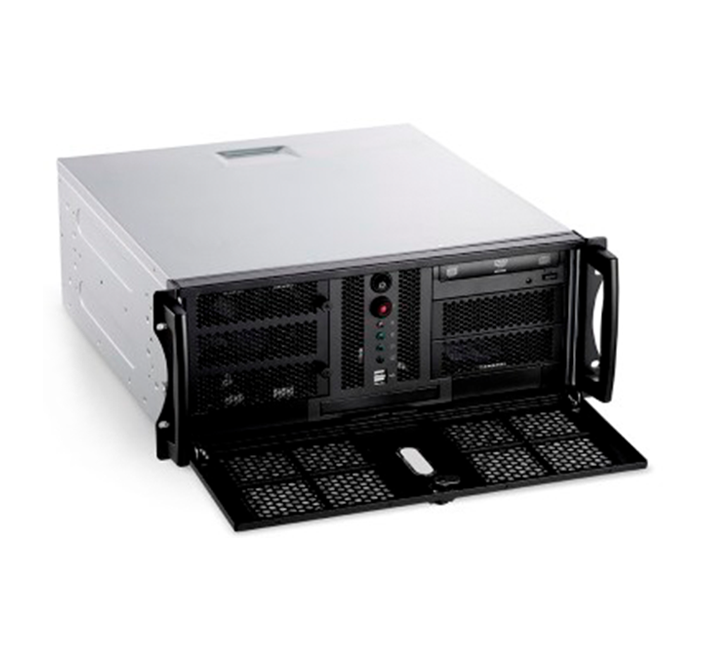

RK-630 type
Complies with EIA RS-310C 19 "shelving installation standard;
Support ATX industrial motherboard;
Three 5.25 ", one 3.5", and one ultra-thin DVD front drive slot, one internal 3.5 "or 2.5" drive slot;
The drive slot adopts anti impact and anti vibration design;
Two USB 2.0 interfaces located inside the front chassis door;
A replaceable and easy to clean fan filter screen;
Supports PS2 ATX and mini redundant power supply.
  • Product Size
  • Product Parameter
  • Product Details
  • FAQ
  • Video
Size:430 mm x 176 mm x 467.4 mm
Drive slots: 3 5.25 ", 1 3.5", and 1 ultra-thin DVD front drive slot, 1 internal 3.5 "or 2.5" drive slot
Structure: Heavy steel
Color: Silver
Cooling fan: 1 120 mm x 120 mm x 25 mm ball bearing fan and optional 80 mm x 80 mm x 25mm fan (inlet)
Front panel: Front panel with lock, 2 USB 2.0 ports
LED: HDD activity, system power, and 2 user-defined LEDs
System reset switch and ATX power switch
Power supply: PS2 ATX and mini redundant power supply
Packaging size:570 mm x 313 mm x 603 mm
Weight: Net weight: 9.5 kg
Gross weight: 12.3 kg
Environmental parameters: Working temperature: 0 ° C to+40 ° C
Storage temperature: -20 ° C to+60 ° C
Relative humidity: 40 ° C @ 90% RH
